The GPU kernels

For a numbered walk-through on real data, with the settings and troubleshooting, see Tutorial 11: The GPU.

Calibration, the registration warp and a stack's per-pixel combiner (the stages whose cost grows with the number of pixels times the number of frames) can run on a graphics card. They are WGSL compute kernels run through wgpu on the device that Helia's helia-gpu crate opens (valerian-gpu), so they work on Vulkan, Metal and DirectX with the same code, and on a software adapter (lavapipe, WARP) for testing. The CPU code in valerian-core is the specification: every kernel has a parity test against it.

What runs where

Star detection and the registration fit are branchy and sequential; they stay on the CPU. A case a kernel does not cover (more than 128 frames, a frame larger than the device allows in one buffer) falls back to the CPU and is counted and reported.

On the command line

calibrate, register and stack take --backend auto|cpu|gpu:

valerian stack cal/ -o stack.fits --backend gpu

compute: GPU: NVIDIA A100 80GB PCIe (Vulkan, DiscreteGpu)
...
GPU: 3 calls ran on the device

gpu uses a real GPU, or the software adapter if there is none (with a note that it is slower than the CPU), or fails. cpu never opens a device. auto (the default) uses a real GPU only for stack, where the frames stay on the device from the warp to the combine, and the CPU for calibrate and register, where one stage alone is slower on the GPU (see below); it never picks a software adapter, which is slower than the CPU code.

valerian bench times every stage on the CPU and on the GPU and checks that they agree:

--repeats (default 3) is how many times each stage is timed; the table shows the median, so a larger number steadies the figures on a busy machine.

valerian bench                          # a real GPU, 4096 x 3072, 20 frames
valerian bench --adapter software --width 1024 --height 768 --frames 12

stage                                  CPU ms    GPU ms speed-up up / kernel / down ms worst diff    > 1e-4
calibrate (bias, dark, flat, pixel map)  39.2      91.3     0.4x            4 / 5 / 81    4.24e-7     0.0e0
warp (bicubic)                           68.9     101.3     0.7x           20 / 7 / 72    4.85e-5     0.0e0
combine (sigma clip)                    355.7     480.0     0.7x         282 / 82 / 130    3.18e-4    9.9e-8
combine (winsorised)                    672.0     534.5     1.3x         258 / 122 / 95    3.16e-4    3.0e-7
combine (linear fit)                    478.6     481.5     1.0x         236 / 114 / 91    5.65e-4    2.4e-6
stack plane (warp + combine)           1657.6     576.0     2.9x         102 / 366 / 85    4.96e-2    2.0e-5

In the desktop app

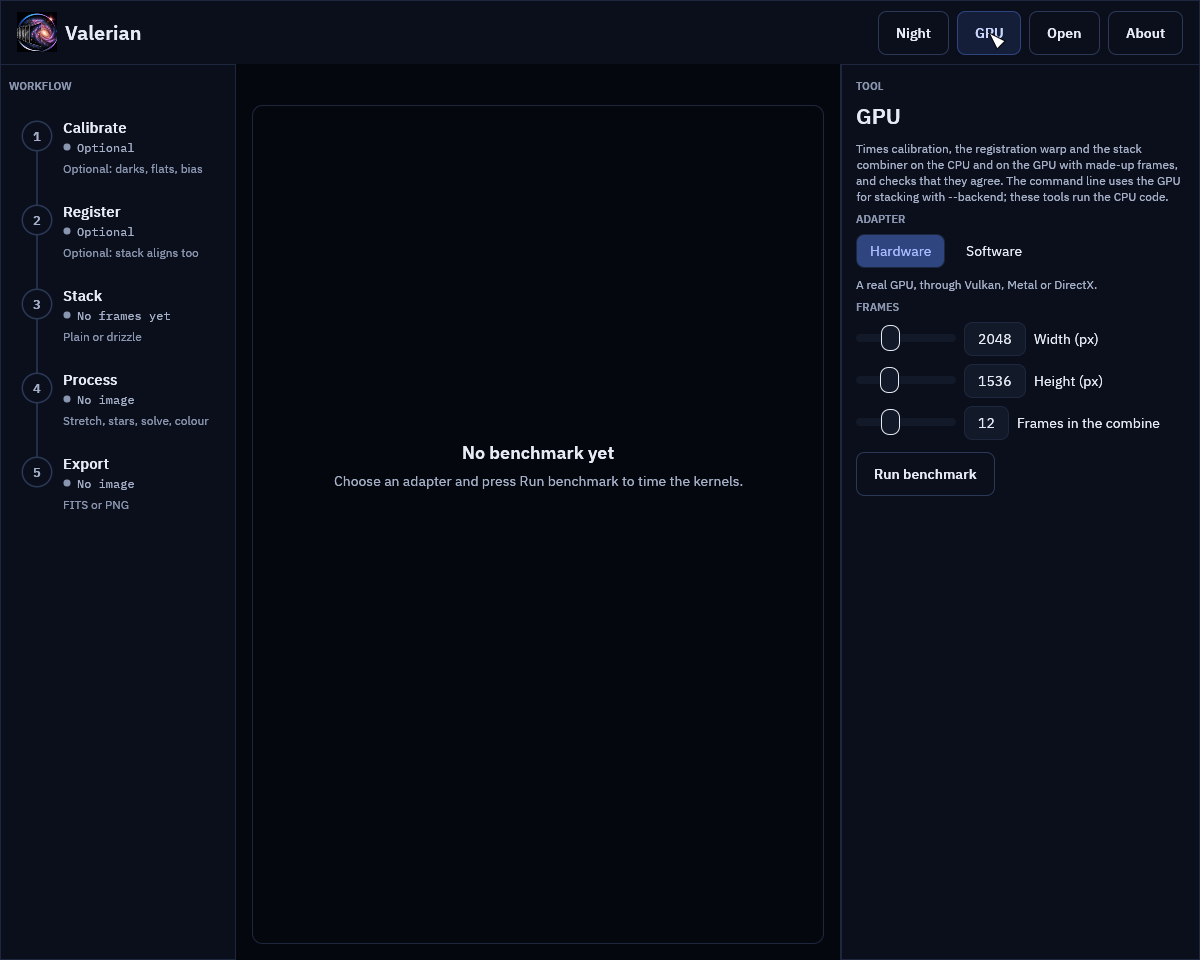

The GPU tool opens the adapter you choose, runs the same benchmark on frames of the size you set, and shows the times as a table and a chart. The desktop app's other tools run the CPU code; this panel is where you see what your device does.

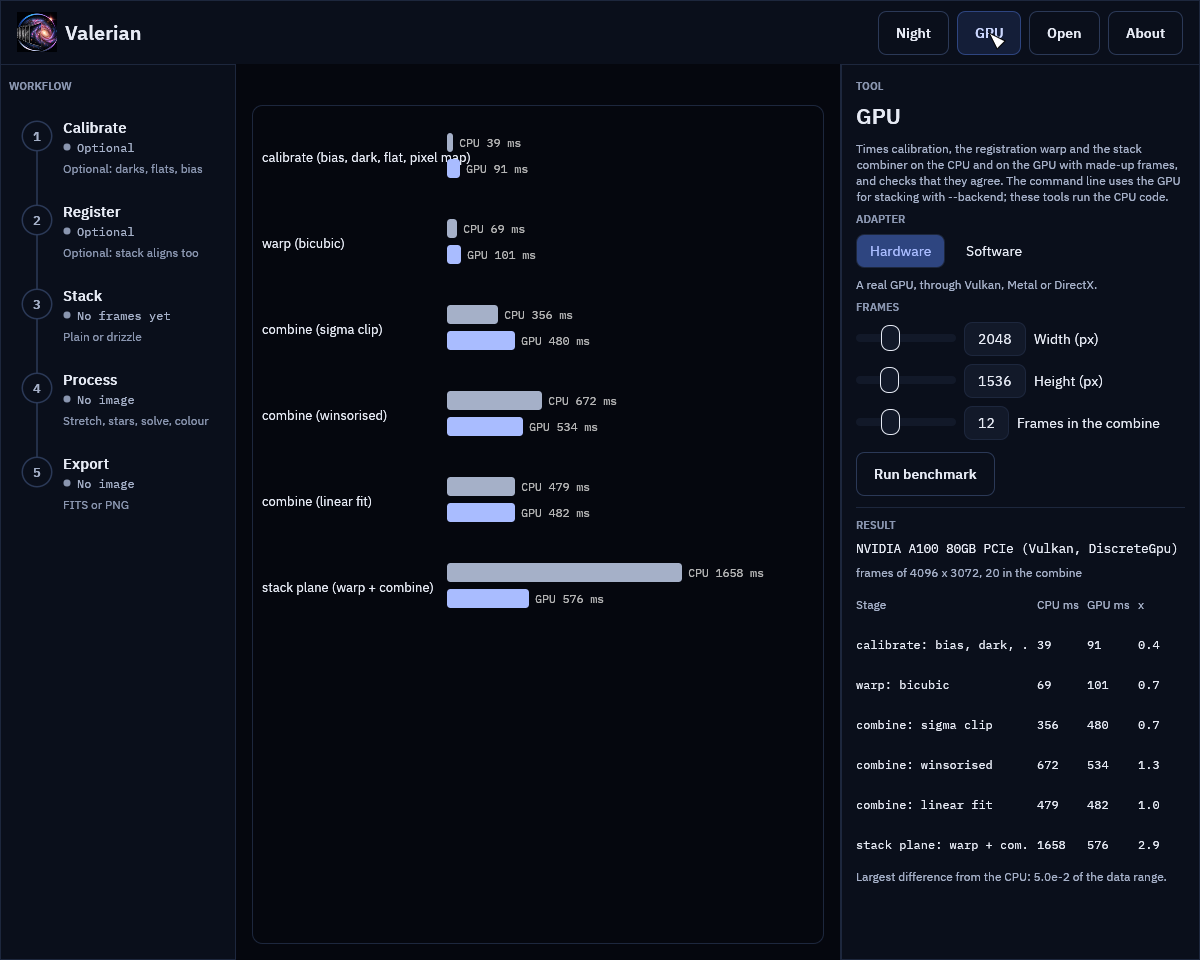

The screenshot of the result shows the figures measured on an A100 (below), so the picture is the same on every machine.

Measured

On the test machine: a 24-core CPU that other jobs were sharing, and one of its NVIDIA A100 80 GB cards over PCIe (Vulkan), frames of 4096 by 3072 and 20 frames in the combine. Times are the median of three runs after a warm-up; the three numbers beside them are the average time of a GPU call spent copying to the device, running the kernels and copying back.

The kernels themselves are fast: calibration runs 5 ms on the card against 39 ms on 24 cores, the warp 7 ms against 69 ms, the combine 80 to 120 ms against 360 to 670 ms. But the data has to cross the PCIe bus both ways, and for one stage on its own the copies cost more than the kernel saves: reading 50 MB back took 70 to 80 ms. So a single stage is no faster on the GPU than on a 24-core CPU, and only the winsorised combine breaks even. What does pay is keeping the frames on the card: a stack uploads each frame once, warps and level-matches all of them into one buffer on the device, combines them in bands, and sends back only the result, which is 1.7 to 2.9 times faster than the CPU. That is why --backend auto uses the GPU for stack and not for calibrate or register. The software adapter (llvmpipe) is slower than the CPU on every stage (0.3x to 0.6x at 1024 x 768) and is there to test the kernels, not to use.

Two further runs on real data: sixty raw Seestar S50 frames of IC 5070 (1080 by 1920, three colours after demosaicing) stack in 9.8 s on the CPU and 10.0 to 11.1 s with --backend gpu, and 25 calibrated ASI1600MM frames (10 of which register, 16 MP) in 6.1 to 7.0 s and 6.0 to 6.3 s. The wall time is the same because the star detection and the registration, which stay on the CPU, are most of it, but the CPU time used falls from 72 s to 26 s and from 66 s to 54 s, which a busy machine can spend on something else. The two stacks agree: at most 1.2e-3 (ASI1600) and 3.6e-3 (Seestar) of the data range apart at one pixel, and 1.7e-5 and 2.3e-5 of the pixels differ by more than 1e-4 of the range.

How well they agree

The parity tests (crates/valerian-gpu/tests/parity.rs, run on the software adapter in CI and on the A100) check each kernel against the CPU code:

• Warp: all three kernels and five transforms (shifts, a rotation with scale, a homography); the difference is at most 5e-4 of the data range, which is what single-precision coordinates cost at the far edge of a 4000 pixel frame, and where the source has no data (NaN or infinite) so does the result.
• Calibration: at most 1e-5 of the range (the arithmetic is the same single precision), the same number of pixels repaired, on mono and on Bayer data with its ring spacing of two, with masters kept on the device between lights.
• Combine: every rejection scheme at 3, 12, 33 and 70 frames, with weights, with NaN where a frame has no data. The mean differs by at most 2e-5 relative where both use the same samples. A sample that sits exactly on a clipping limit can fall either way in single precision, so a pixel in a thousand at most uses a different number of samples. The per-frame counts of rejected samples agree to 0.2 %.
• A whole stack: mono and three-plane colour, Lanczos and bilinear, 9 and 40 frames, with and without level matching, against the CPU stack.

What it cannot do

• Double precision. WGSL has no 64-bit floats, so the kernels work in single precision where the CPU uses double in the linear-fit regression and the weighted mean. The differences above are the cost.
• More than 128 frames in one combine; the CPU does those.
• A GPU for the whole pipeline. Detection, registration, plate solving, drizzle, star removal and the rest run on the CPU.
• Beat 24 cores on one stage. See the measurements: the bus is the limit.
